How to Create and Configure Custom iDoc Type in SAP

Although we should always try to reuse iDoc Message Types and iDoc Types provided with standard SAP content, there could be scenarios where you need to create a completly new Message Type and iDoc type with your own custom processing logic. Let’s look at how to create and configure a completely new custom iDoc Type in SAP.

SAP Versions used in the illustration:

• SAP S4 HANA Fashion 1709

Scenario or Requirement for Custom iDoc Type:

Let’s assume you have an external Human Resource Management system and you want to transfer employee information to SAP from this external HR system using iDocs.

Overview of Steps to Create Custom iDoc Types.

1. Register logical system – bd54 or sale

2. Create custom iDoc segments – we31

3. Define custom iDoc type – we30

   • Create iDoc type

   • Assign segments to iDoc Basic type

   • Configure segment properties

4. Create custom Message Type – we81

5. Assign iDoc Basic type to Message Type – we82

6. Create Function Group – se80

7. Develop iDoc processing Function Module – se37

   • Define iDoc processing Function Module

   • Code iDoc data processing ABAP logic

8. Assign FM to Message Type/Basic Type combination – we57

9. Configure characteristics of processing FM – bd51

10. Configure custom inbound Process Code – we42

    • Create inbound Process Code

    • Assign processing FM to Process Code

    • Assign iDoc Message Type to inbound Process Code

11. Setup Partner Profile – we20

    • Create Partner Profile

    • Configure inbound parameters of the Partner Profile

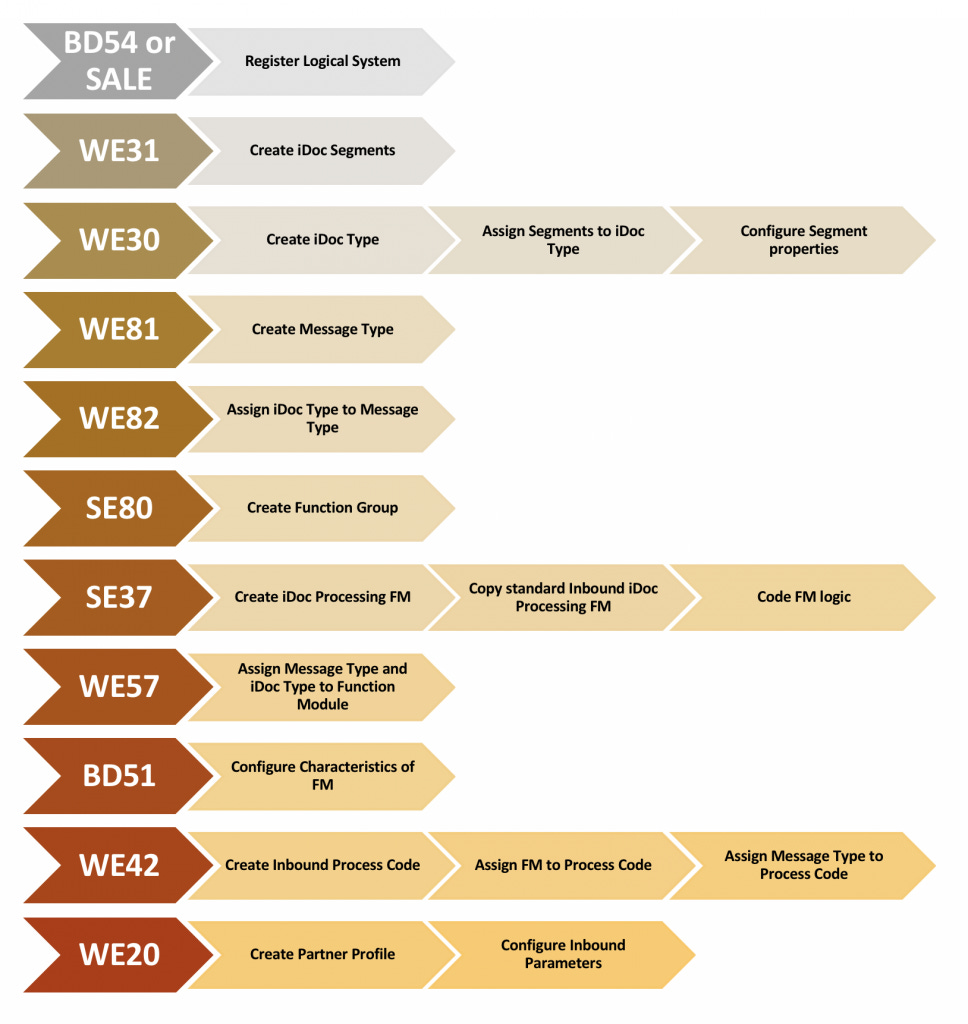

Overview of custom iDoc creation steps

Let’s look at these steps in detail.

Step 1: Define iDoc Sender System as a Logical System in SAP.

First, let’s register the external HR system as a Logical System in SAP. Go to ALE transaction ‘SALE’ and select ‘DefineLogical System’ under ‘Logical Systems’.

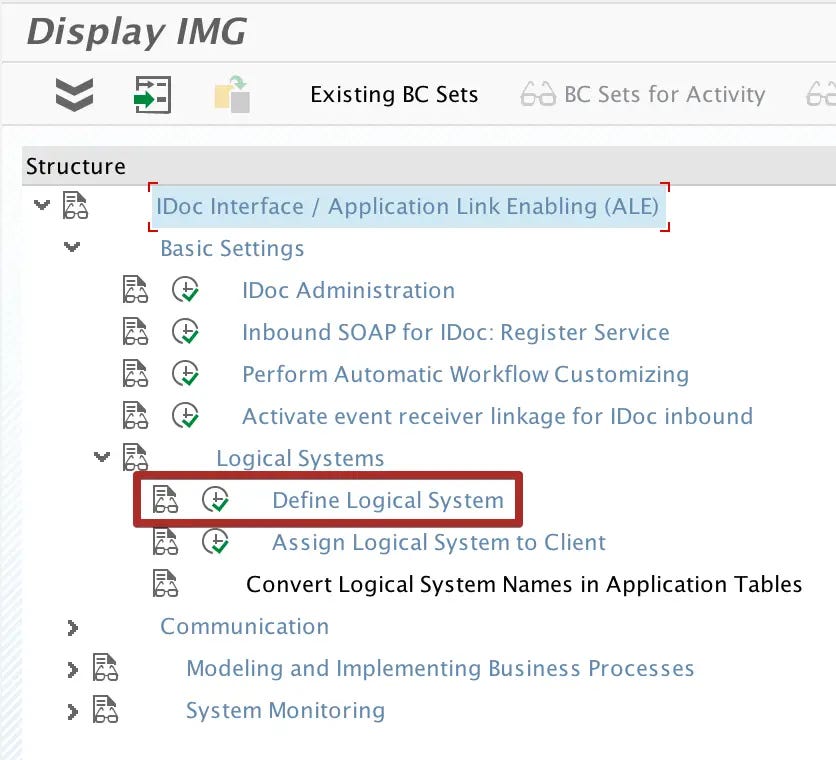

Select ‘Define Logical System’ in SALE.

Let’s register the HR system as ‘TESTHR’.

Register iDoc sender Logical System

You could also directly register the Logical System using transaction bd54.

Step 2: Create iDoc Custom iDoc Segments using Transaction We31.

Go to iDoc segment creation transaction we31 and create two new segments ‘ZEMP_HDR’ and ‘ZEMP_DESIGNATION’.

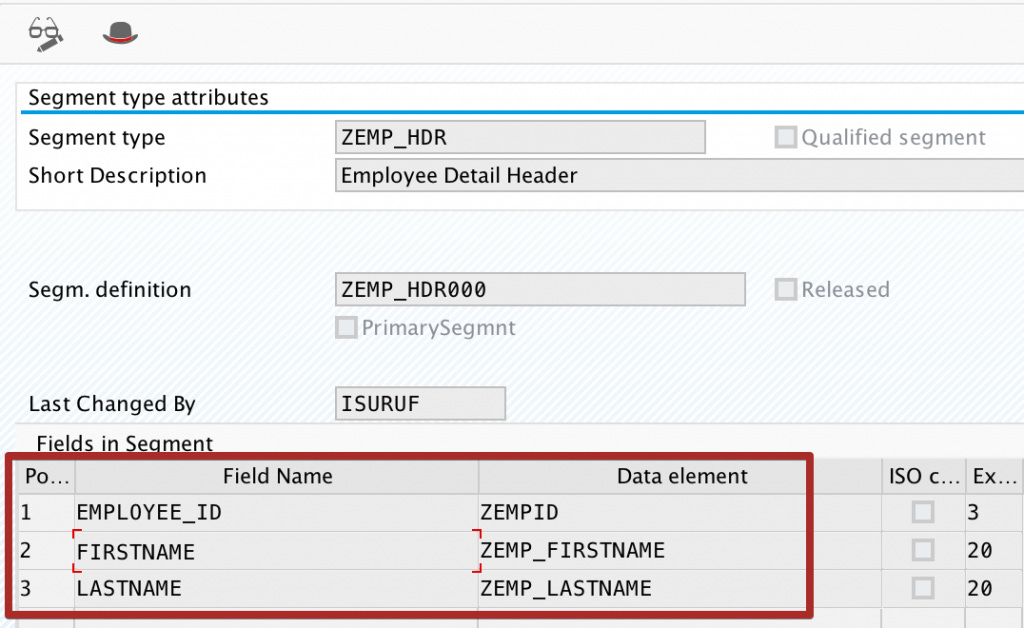

Create iDoc header segment in we31.

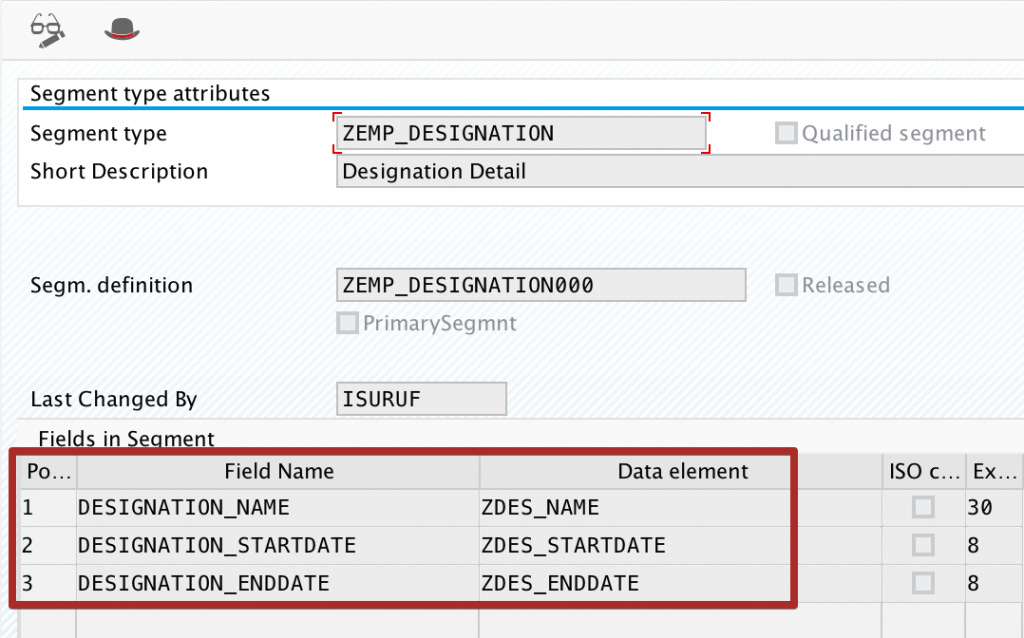

Configure iDoc detail segment in we31

Using Segment Editor configure the fields of each segment. Set the field names and assign a data type for each field.

Step 3: Create Custom Z iDoc Basic type using Transaction we30.

Go to iDoc Basic Type creation transaction we30 and create custom iDoc type ‘ZEMPLOYEE_DETAIL’.

Select ‘Create New’.

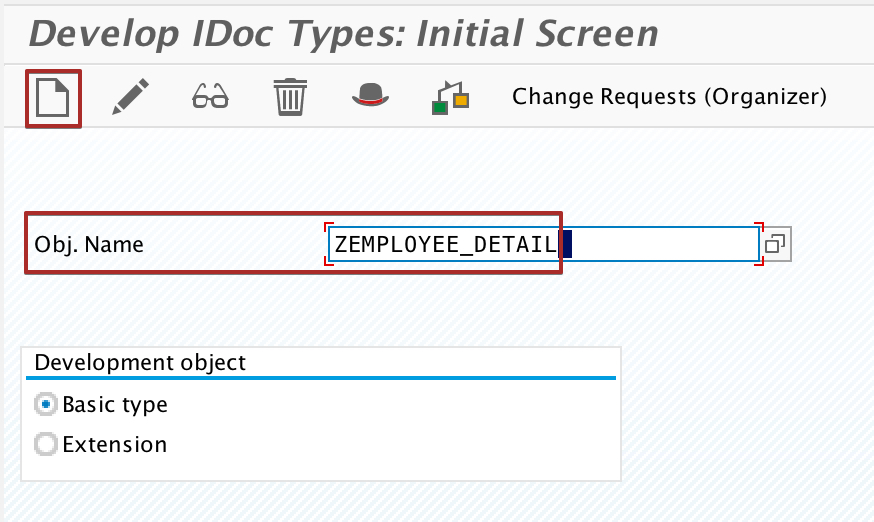

Create new custom iDoc Type in transaction we30

Using Create button, add segments created in the previous step to iDoc Basic Type.

Add segments to iDoc basic type in transaction we30

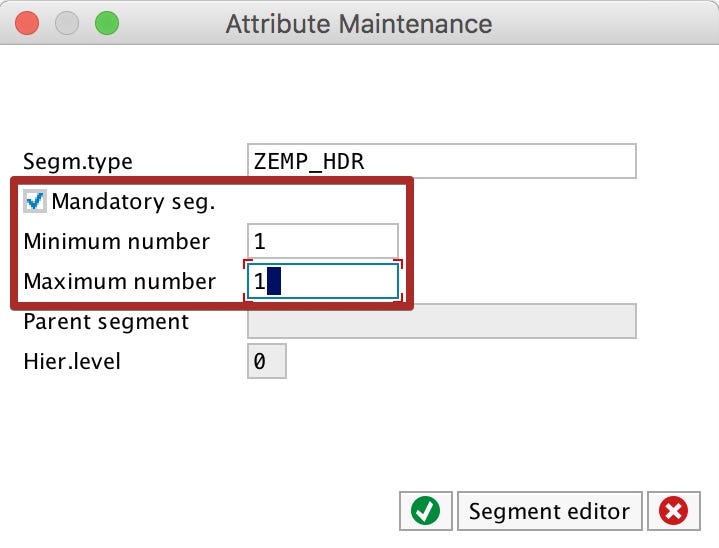

Configure iDoc segment maximum and minimum occurrences in we30

Set iDoc segment properties ‘Maximum Number’ and ‘Minimum Number’. These two settings correspond to maximum number of occurrences and minimum number of occurrences of the iDoc segment. If you want to configure a segment as mandatory, set the ‘Minimum Number’ as one.

Step 4: Create Message Type using Transaction we81.

In change mode, add new entry and set the Message Type name as ‘ZMSG_TY_EMPLOYEE_DETAIL’.

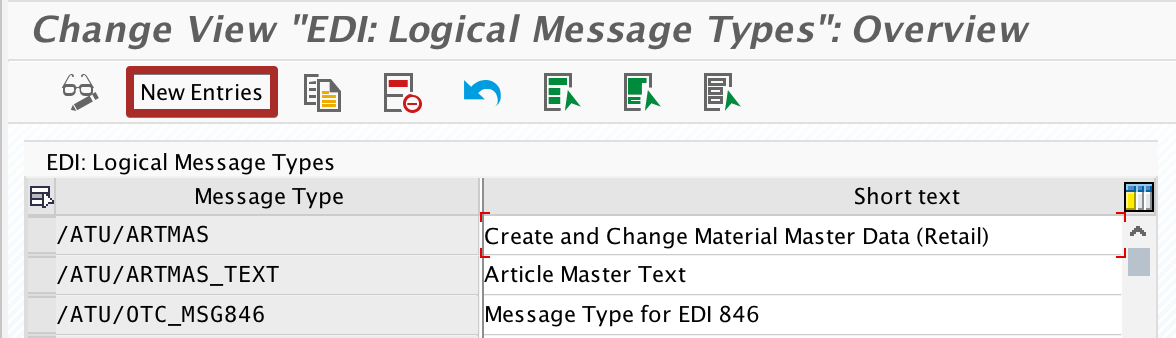

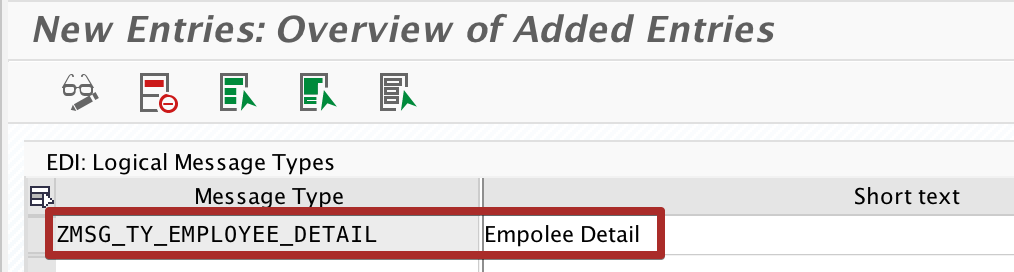

Create custom Message Type in we81

assign custom Message Type name in we81

Step 5: Assign Message Type to iDoc Type Using Transaction we82.

Assign the Message Type ‘ZMSG_TY_EMPLOYEE_DETAIL’ created in step 4 with iDoc type ‘ZEMPLOYEE_DETAIL’ created in step 3.  Notice, you also have to set the release version of your SAP system with the configuration.

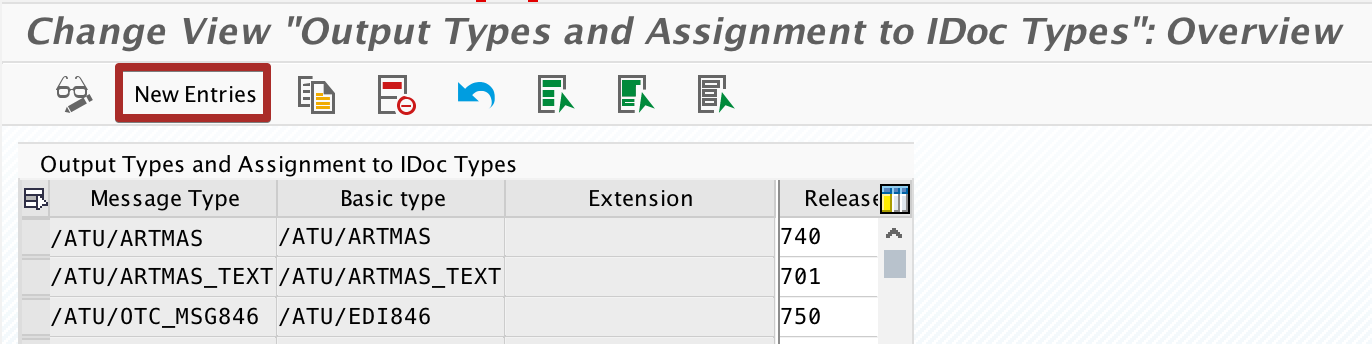

Add new entry in transaction we82

Step 6: Create Function Group in Transaction se80.

To assign the iDoc processing Function Module, create Function Group ‘ZEMPDETAIL_INBOUND_IDOC’ using transaction se80.

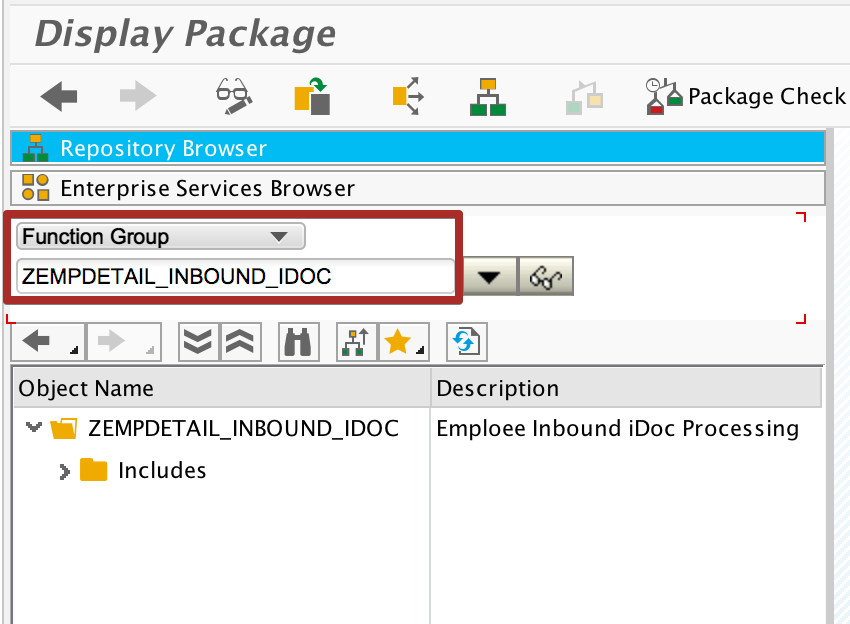

Function Group for inbound iDoc Function Module – se80

Step 7: Create Inbound iDoc Processing Function Module in se37.

We need a Function Module to process inbound iDocs in SAP. Inbound iDoc function modules should be in a certain format. That is, all inbound iDoc processing function modules have the same signature (import, export, tables and changing parameters). Only application/business logic of the function module is different in order to handle different Message Types and iDoc Types.

Signature of the inbound iDoc processing Function Module should be in below format.

  IMPORTING
     VALUE(INPUT_METHOD) LIKE  BDWFAP_PAR-INPUTMETHD
     VALUE(MASS_PROCESSING) LIKE  BDWFAP_PAR-MASS_PROC
  EXPORTING
     VALUE(WORKFLOW_RESULT) LIKE  BDWF_PARAM-RESULT
     VALUE(APPLICATION_VARIABLE) LIKE  BDWF_PARAM-APPL_VAR
     VALUE(IN_UPDATE_TASK) LIKE  BDWFAP_PAR-UPDATETASK
     VALUE(CALL_TRANSACTION_DONE) LIKE  BDWFAP_PAR-CALLTRANS
  TABLES
      IDOC_CONTRL STRUCTURE  EDIDC
      IDOC_DATA STRUCTURE  EDIDD
      IDOC_STATUS STRUCTURE  BDIDOCSTAT
      RETURN_VARIABLES STRUCTURE  BDWFRETVAR
      SERIALIZATION_INFO STRUCTURE  BDI_SER
  EXCEPTIONS
      WRONG_FUNCTION_CALLED

Find any standard inbound iDoc processing Function Module using transaction we57 and copy it to a custom Z function module in transaction se37. In this example I am using the standard Function Module ‘BAPI_iDoc_Input1’ to create my custom Z function module.

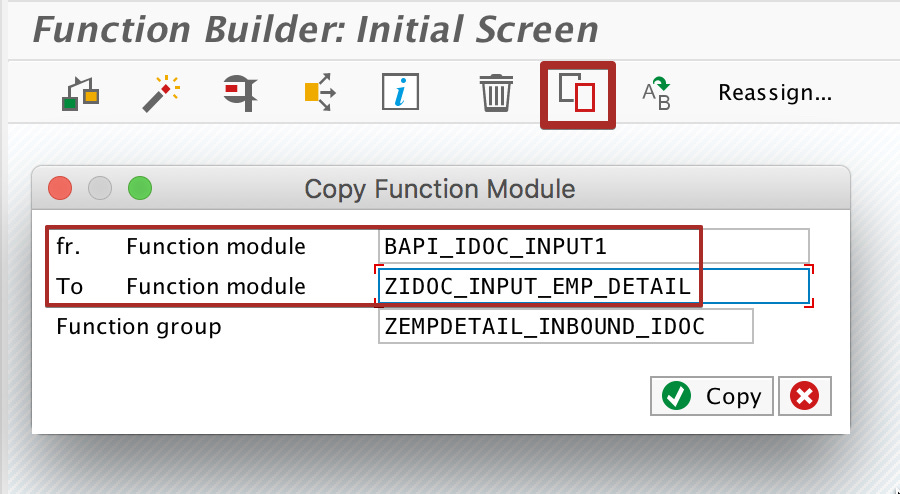

Copy inbound iDoc processing function module to custom z function module.

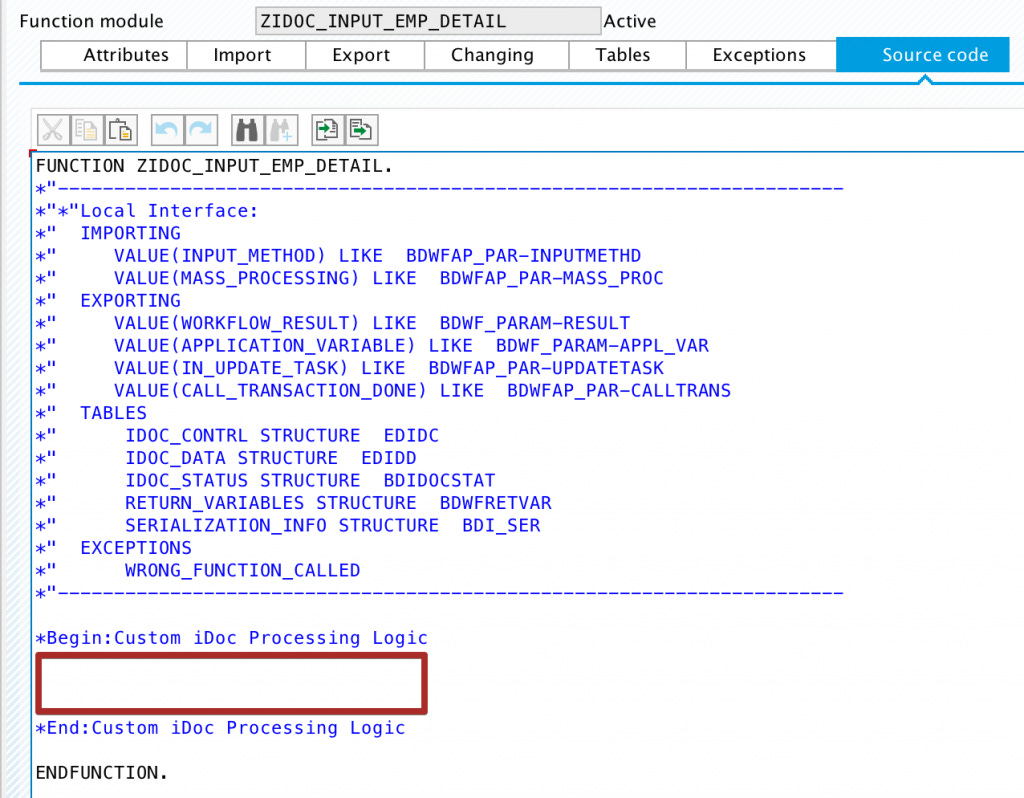

Custom inbound iDoc Processing Function Module format and ABAP logic

Write your own ABAP logic using IMPORT and TABLES parameters. Table IDOC_DATA contain iDoc segment data.

Step 8: Assign Message Type and iDoc Type to Function Module using Transaction we57.

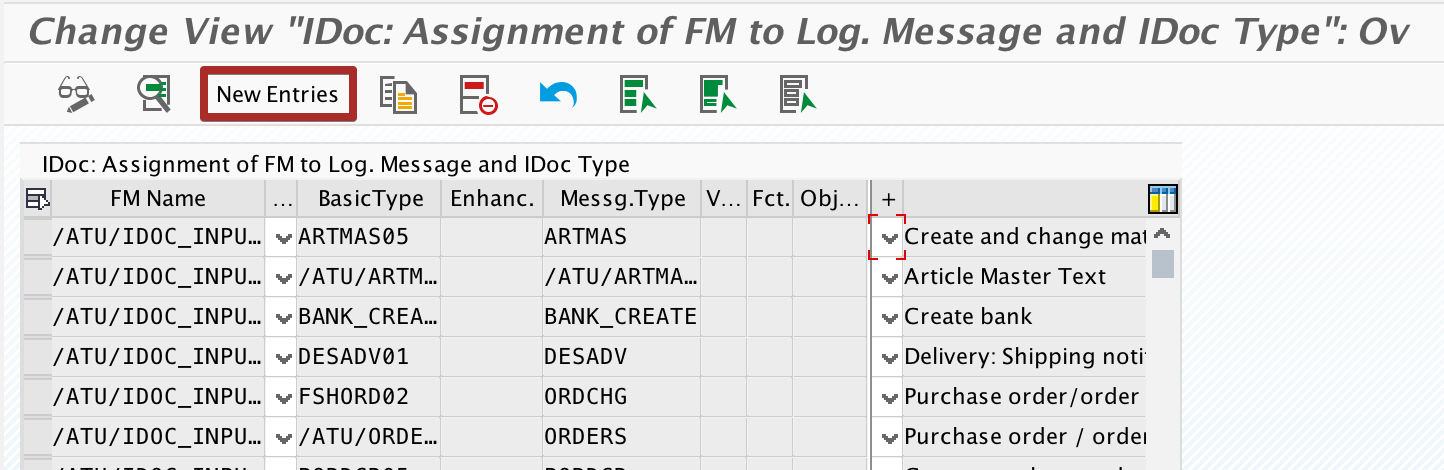

Add new entry in we57 for custom Message Type, iDoc Type and Function Module

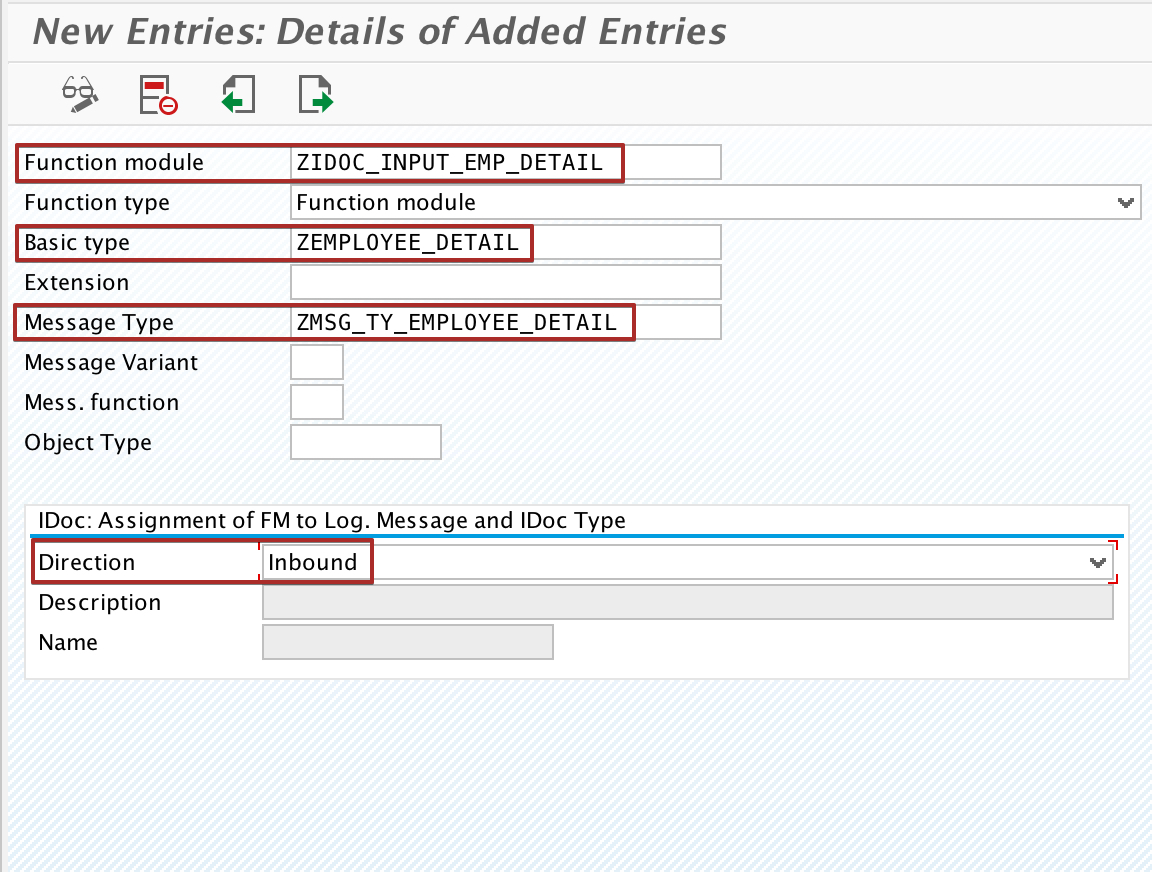

Bind custom iDoc Function Module with Message Type and iDoc Type created

Step 9: Using Transaction bd51 Configure Characteristics of Inbound Function Module.

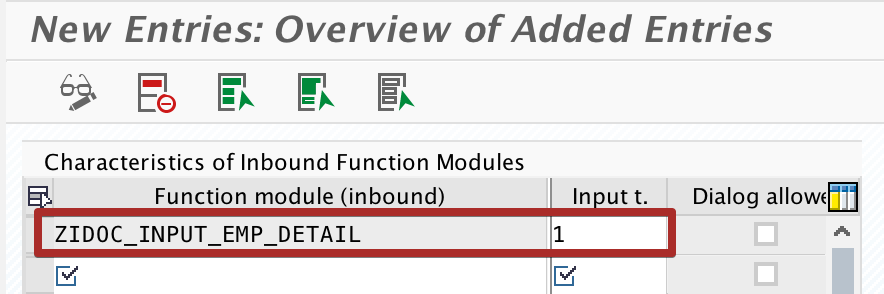

Configure inbound Function Module parameters

Step 10: Create Inbound Process Code in Transaction we42.

Create inbound process code ‘ZEMP_DETAIL_POST’ using custom iDoc Function Module created in step 7 and assign the Logical Message ‘ZMSG_TY_EMPLOYEE_DETAIL’ to Process Code.

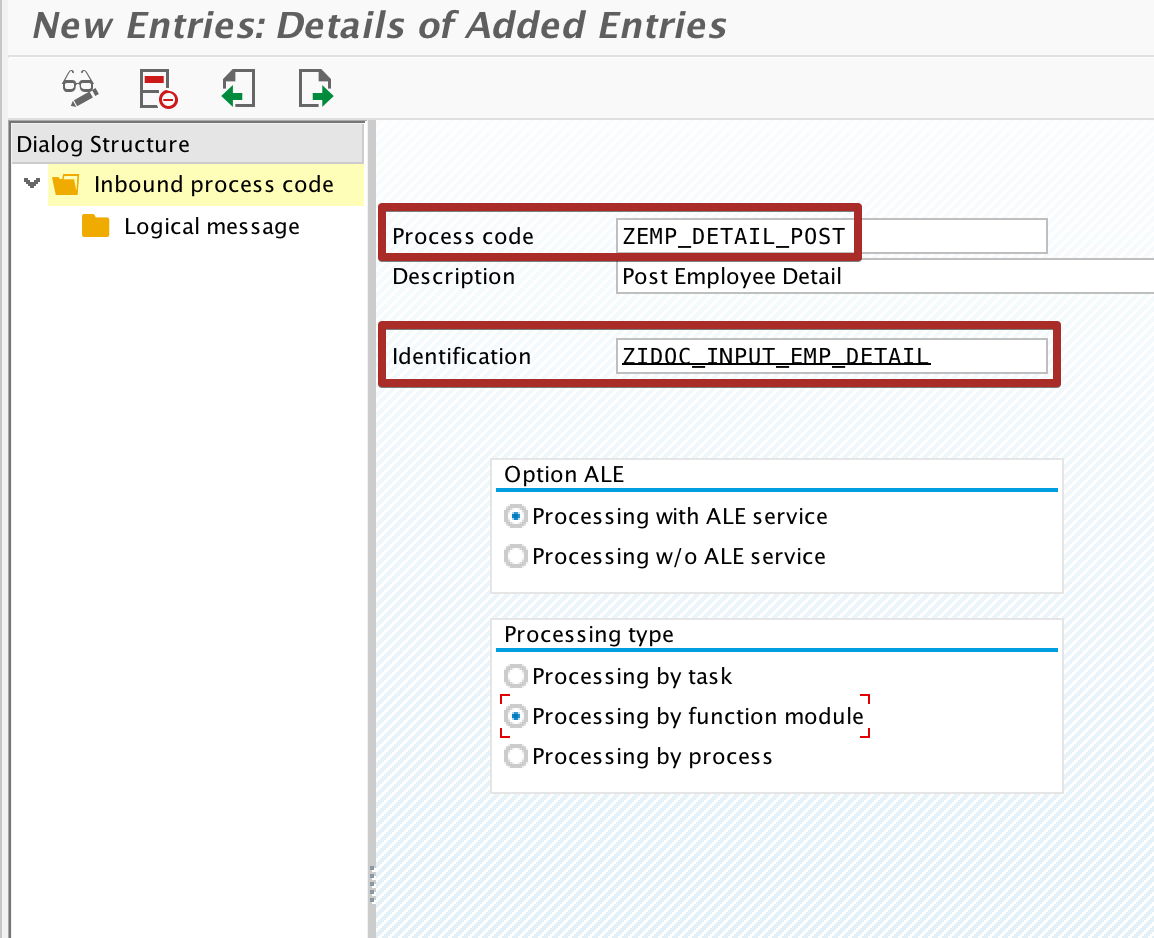

Configuration of inbound Process Code in transaction we42

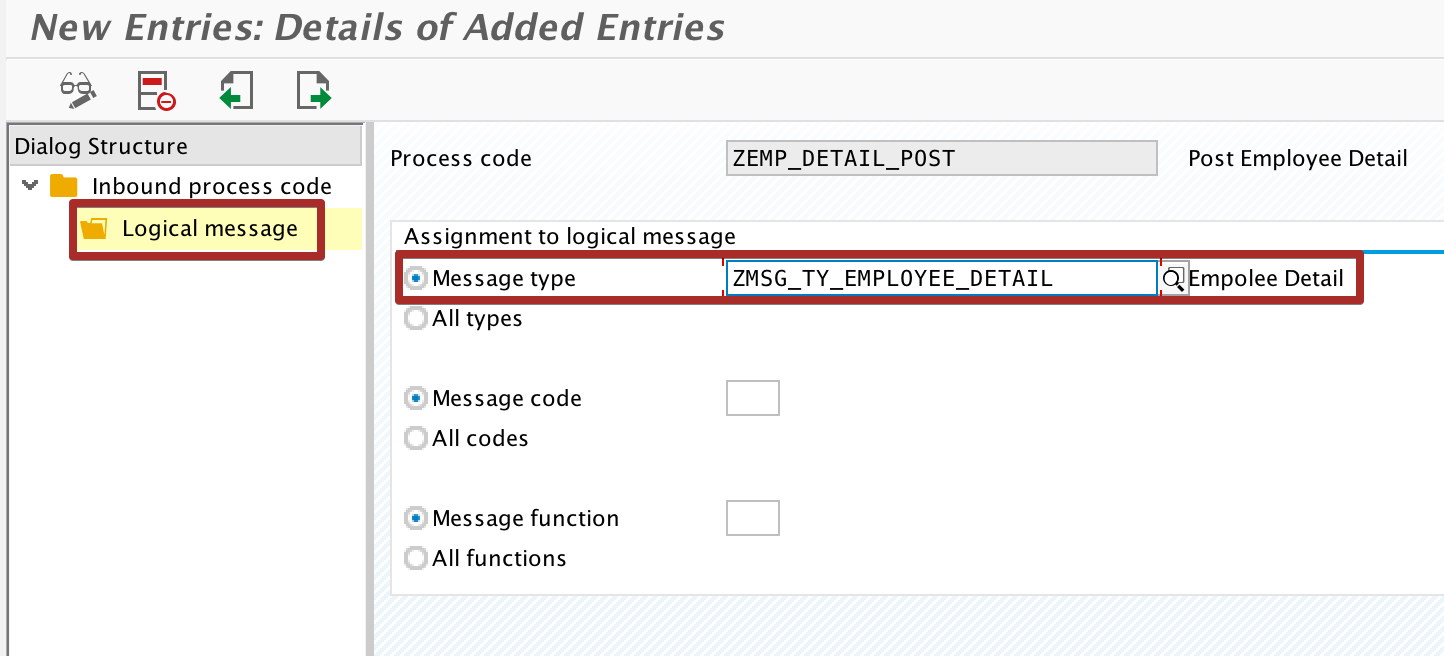

Assign logical Message Type to Process Code

Step 11: In Transaction we20 Create Partner Profile.

Create Partner Profile in transaction we20 with the same name of the Logical System we had registered in Step 1.

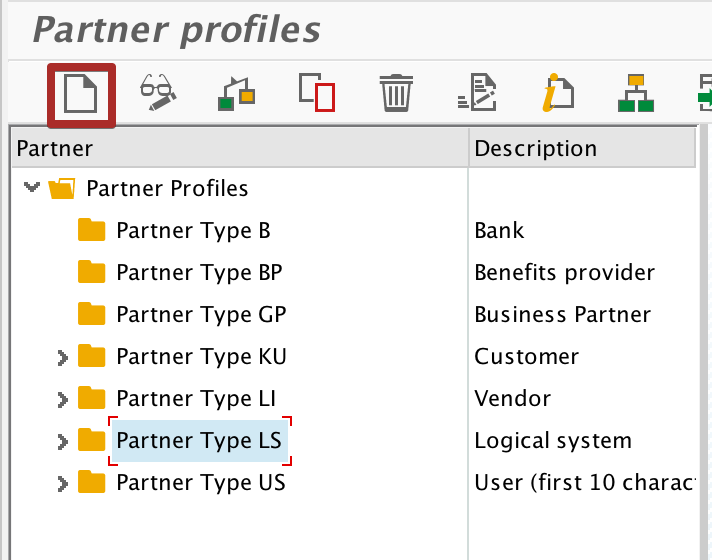

Add new Logical System in we20

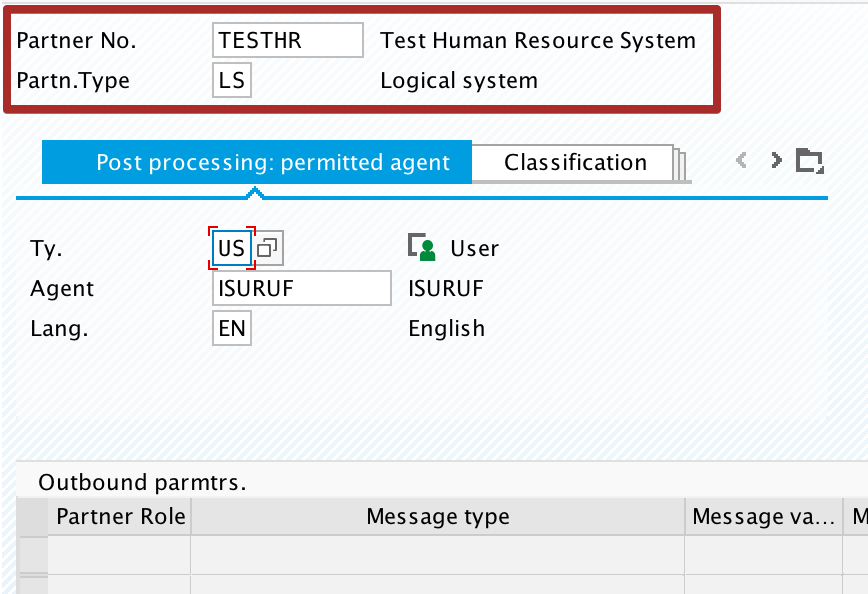

Create Partner type Logical System

Step 13: Configure Inbound Parameters of Partner Profile using Transaction we20.

Configure Inbound Parameters with the Custom Message Type. Then assign the custom Z process code created in previous steps.

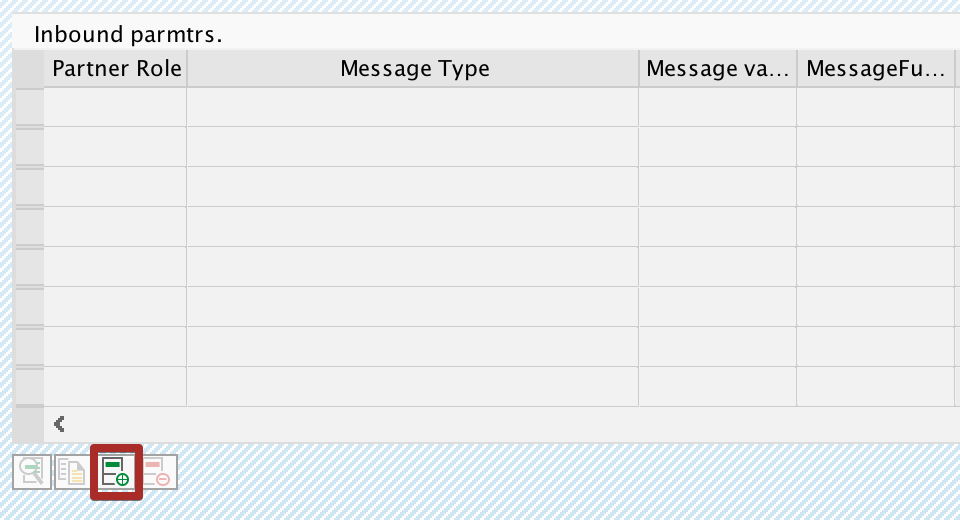

Add new Inbound Parameter for Partner

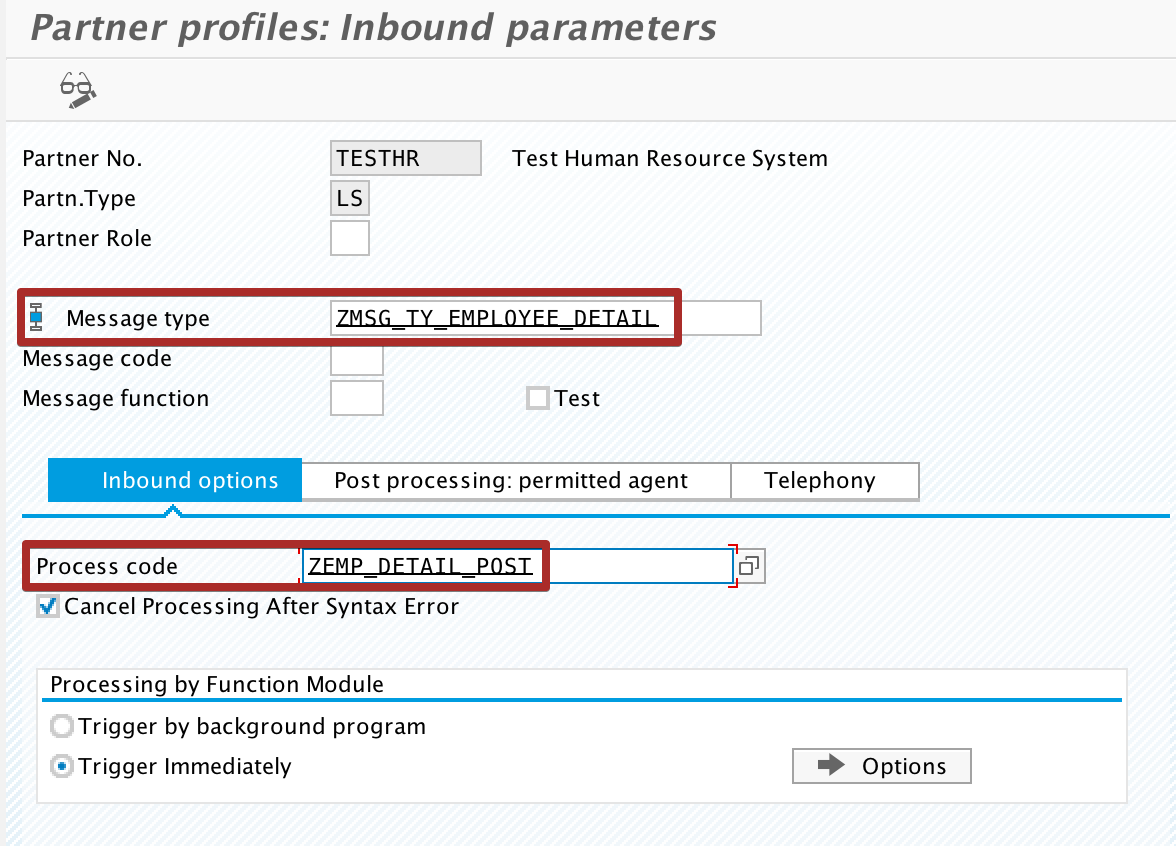

Configure Message type, Process Code and Processing Type for Inbound Parameter

Step 12: Using iDoc Test Transaction we19 Create Test iDoc.

To test the newly created custom iDoc type, use transaction we19 and select test using ‘Basic Type’.

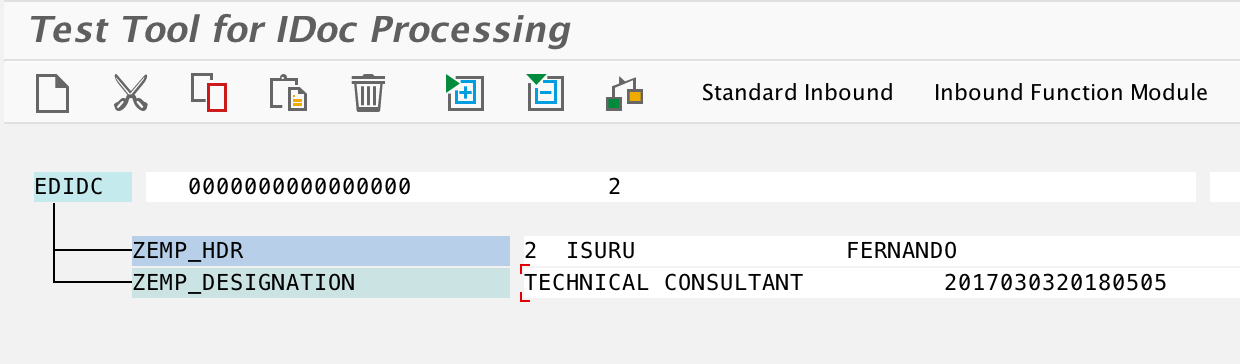

Fill data to the iDoc segment by double-clicking on each segment and executing the iDoc using ‘Inbound Function Module’ option.

Test custom iDoc Type and Process Code in we19

You can check the status of the iDoc created in we02 or we05.
